Graphs

Graph problems are mostly about (1) modeling correctly and (2) picking the right tool for the constraints.

A good workflow:

  1. Model the problem as a graph.
    • What are the nodes?
    • What are the edges?
    • Directed or undirected?
    • Weighted or unweighted?
  2. Estimate constraints.
    • Let n be the number of nodes and m the number of edges.
    • Use an adjacency list unless the graph is very dense.
    • Typical targets: O(n+m), O(m log n), or O(n^2) depending on constraints.

1. Modeling Patterns​

Before algorithms, make sure you’re building the right graph.

Common modeling patterns

  • Grid → graph: each cell is a node; edges go to neighbors (4-dir / 8-dir); walls block edges.
  • State graph (BFS / shortest path on states): node = (position, extra_state) such as (v, mask) or (v, parity).
  • Constraints → directed edges: “A must come before B” becomes an edge A -> B.
  • Equivalence / grouping: “in the same component” often points to DSU / BFS / DFS.

Sanity checks

  • Directed vs undirected?
  • Weighted vs unweighted?
  • Is m large (up to 2e5)? Avoid O(n^2) methods.
  • Are there negative weights? Dijkstra may not apply.

2. Depth-First Search (DFS)​

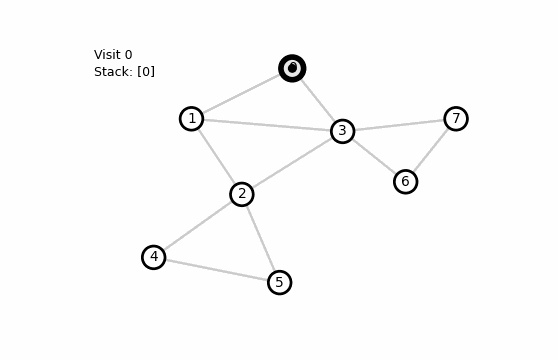

Depth-First Search explores “as deep as possible” before backtracking. image

When to use / common patterns

  • Finding connected components (undirected)
  • Reachability / flood fill (including grids)
  • Detecting cycles (undirected): look for a back-edge to a visited node that isn’t the parent
  • Building DFS orderings (e.g., SCC, or topo via DFS finish times)

Implementation Notes

  • Visited array prevents revisits.
  • Parent tracking helps reconstruct paths / build a DFS tree.
  • DFS tree fact (undirected graphs): DFS defines a rooted DFS tree (or forest). Every edge is either a tree edge or a back edge that connects a node to one of its ancestors. In particular, there are no “cross edges” between different DFS subtrees in an undirected DFS.
  • Watch out for recursion depth (especially in Python). Use an explicit stack if needed.
  • If you just need reachability (either DFS or BFS works), DFS is often the quickest to code.

Complexity

  • O(n + m) time, O(n) memory

Example problems:

3. Breadth-First Search (BFS)​

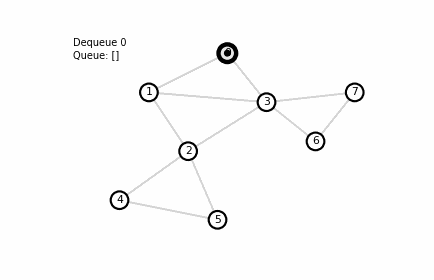

Breadth-First Search explores in increasing distance from a start node (by “levels”). image

When to use

  • Shortest path in unweighted graphs (each edge cost = 1)
  • Finding minimum number of moves on grids
  • Multi-source shortest distances (start from many sources at once)
  • Layering / level-by-level processing

Implementation Notes

  • Queue + dist array: in an unweighted graph, the first time you visit a node you’ve found its shortest distance.
  • Parent array: reconstruct the shortest path.

Complexity

  • O(n + m) time, O(n) memory

Example problems:

More practice for DFS and BFS:

4. Shortest Paths​

“Shortest path” depends heavily on edge weights.

Choosing the right tool

  • Unweighted: BFS
  • Non-negative weights: Dijkstra (min-heap / priority_queue)
  • Negative weights (no negative cycles): Bellman–Ford
  • All-pairs, small n (~500): Floyd–Warshall

Dijkstra (most common) Works when all edge weights are >= 0.

  • Maintain dist[v] = best known distance
  • Use a min-heap priority queue on (dist, node)
  • Ignore stale heap entries (classic CP trick)

Complexity

  • Dijkstra: O(m log n) (often written as O(m log m) in implementations using push-heavy heaps)
  • Bellman–Ford: O(nm)
  • Floyd–Warshall: O(n^3)

Example problems:

Practice:

5. Topological Sort​

Topological sort orders vertices of a directed acyclic graph (DAG) such that for every edge u -> v, u appears before v.

When to use

  • Dependencies / prerequisites
  • Scheduling with ordering constraints
  • Any problem that forms a DAG and asks for an order or DP over dependencies

Key properties

  • Only possible for DAGs (no directed cycles)
  • Multiple valid orderings may exist
  • Two standard methods:
    • Kahn’s algorithm (BFS-based): indegree + queue
    • DFS finish times: reverse postorder

Cycle detection

  • Kahn: if you can’t process all nodes, there is a cycle.
  • DFS: recursion-stack technique.

Complexity

  • O(n + m)

Example problems:
